N Female Bulkhead Connector Clamp/Solder Attachment For
RG58, RG55, RG141, RG142, RG223, RG400, .640 inch DD Hole

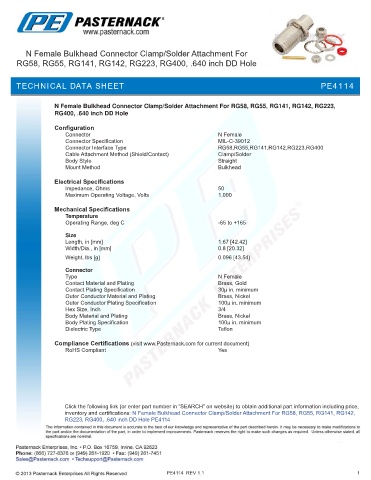

TECHNICAL DATA SHEET PE4114

N Female Bulkhead Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223,
RG400, .640 inch DD Hole

Configuration
Connector N Female
Connector Specification MIL-C-39012
Connector Interface Type RG58,RG55,RG141,RG142,RG223,RG400
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 50
Maximum Operating Voltage, Volts 1,000
Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165

Size
Length, in [mm] 1.67 [42.42]
Width/Dia., in [mm] 0.8 [20.32]
.
Weight, lbs [g] 0.096 [43.54]
Connector
Type N Female
Contact Material and Plating Brass, Gold
Contact Plating Specification 30µ in. minimum
Outer Conductor Material and Plating Brass, Nickel
Outer Conductor Plating Specification 100µ in. minimum
Hex Size, Inch 3/4
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142,
RG223, RG400, .640 inch DD Hole PE4114

PE4114 REV 1.1 1
