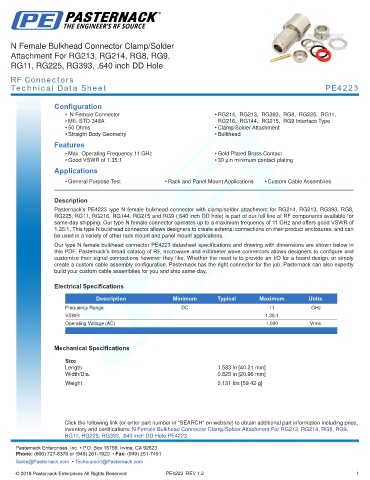

N Female Bulkhead Connector Clamp/Solder
Attachment For RG213, RG214, RG8, RG9,
RG11, RG225, RG393, .640 inch DD Hole

RF Connectors
Technical Data Sheet PE4223

Configuration
• N Female Connector • RG214, RG213, RG393, RG8, RG225, RG11,
• MIL-STD-348A RG216, RG144, RG215, RG9 Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Max. Operating Frequency 11 GHz • Gold Plated Brass Contact
• Good VSWR of 1.35:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE4223 type N female bulkhead connector with clamp/solder attachment for RG214, RG213, RG393, RG8,
RG225, RG11, RG216, RG144, RG215 and RG9 (.640 inch DD hole) is part of our full line of RF components available for
same-day shipping. Our type N female connector operates up to a maximum frequency of 11 GHz and offers good VSWR of
1.35:1. This type N bulkhead connector allows designers to create external connections on their product enclosures, and can
be used in a variety of other rack mount and panel mount applications.
Our type N female bulkhead connector PE4223 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.35:1
Operating Voltage (AC) 1,000 Vrms
.

Mechanical Specifications

Size
Length 1.583 in [40.21 mm]
Width/Dia. 0.825 in [20.96 mm]
.
Weight 0.131 lbs [59.42 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, -
RG11, RG225, RG393, .640 inch DD Hole PE4223 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4223 REV 1.2 1
