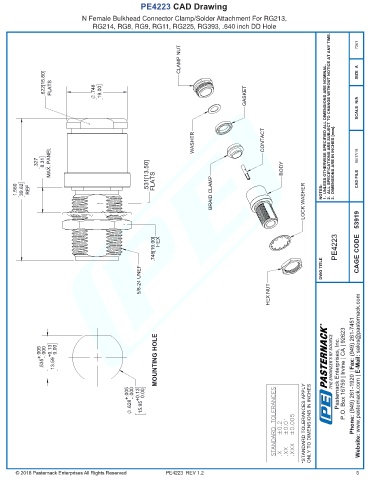

PE4223 CAD Drawing
N Female Bulkhead Connector Clamp/Solder Attachment For RG213,
RG214, RG8, RG9, RG11, RG225, RG393, .640 inch DD Hole

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
CLAMP NUT 7361

.622[15.80] FLATS .748 19.00 SIZE A

GASKET
SCALE N/A

WASHER CONTACT 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

.327 8.31 MAX. PANEL .531[13.50] BODY 3. DIMENSIONS ARE IN INCHES [mm]. 05/17/18

1.560 39.62 REF FLATS BRAID CLAMP LOCK WASHER NOTES: CAD FILE

.748[19.00] HEX PE4223 CAGE CODE 53919

5/8-24 UNEF DWG TITLE

HEX NUT

R
P.O. Box 16759 | Irvine | CA | 92623
Pasternack Enterprises, Inc.

.535 +.005 -.000 13.59 +0.13 0.00 MOUNTING HOLE THE ENGINEER'S RF SOURCE

Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -
.628 +.005 -.000 15.95 +0.13 0.00

.XXX ±0.005
.XX ±0.01
.X ±0.2

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4223 REV 1.2 5
