N Female Bulkhead Connector Clamp/Solder
Attachment For RG59, RG62, .640 inch DD Hole

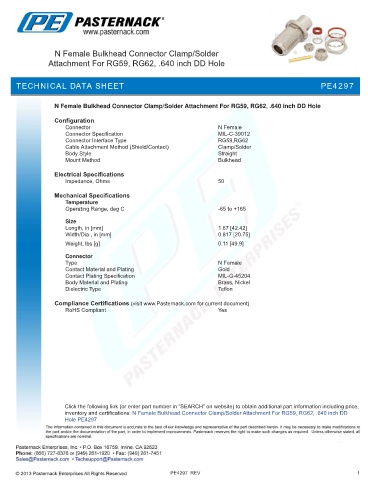

TECHNICAL DATA SHEET PE4297

N Female Bulkhead Connector Clamp/Solder Attachment For RG59, RG62, .640 inch DD Hole

Configuration
Connector N Female
Connector Specification MIL-C-39012
Connector Interface Type RG59,RG62
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165

Size
Length, in [mm] 1.67 [42.42]
Width/Dia., in [mm] 0.817 [20.75]
.
Weight, lbs [g] 0.11 [49.9]
Connector
Type N Female
Contact Material and Plating Gold
Contact Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Connector Clamp/Solder Attachment For RG59, RG62, .640 inch DD
Hole PE4297

PE4297 REV 1
