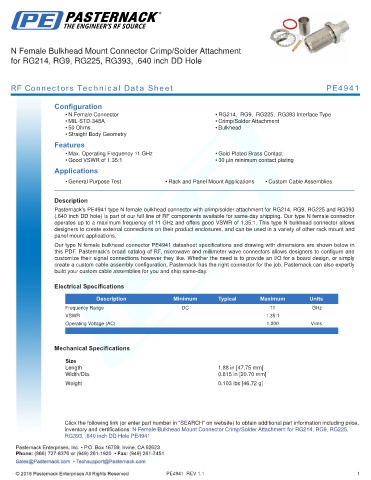

N Female Bulkhead Mount Connector Crimp/Solder Attachment
for RG214, RG9, RG225, RG393, .640 inch DD Hole

RF Connectors Technical Data Sheet PE4941

Configuration
• N Female Connector • RG214, RG9, RG225, RG393 Interface Type
• MIL-STD-348A • Crimp/Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Max. Operating Frequency 11 GHz • Gold Plated Brass Contact
• Good VSWR of 1.35:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE4941 type N female bulkhead connector with crimp/solder attachment for RG214, RG9, RG225 and RG393
(.640 inch DD hole) is part of our full line of RF components available for same-day shipping. Our type N female connector
operates up to a maximum frequency of 11 GHz and offers good VSWR of 1.35:1. This type N bulkhead connector allows
designers to create external connections on their product enclosures, and can be used in a variety of other rack mount and
panel mount applications.
Our type N female bulkhead connector PE4941 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.35:1
Operating Voltage (AC) 1,000 Vrms
.

Mechanical Specifications

Size
Length 1.88 in [47.75 mm]
Width/Dia. 0.815 in [20.70 mm]
.
Weight 0.103 lbs [46.72 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Connector Crimp/Solder Attachment for RG214, RG9, RG225,
RG393, .640 inch DD Hole PE4941

PE4941 REV 1.1 1
