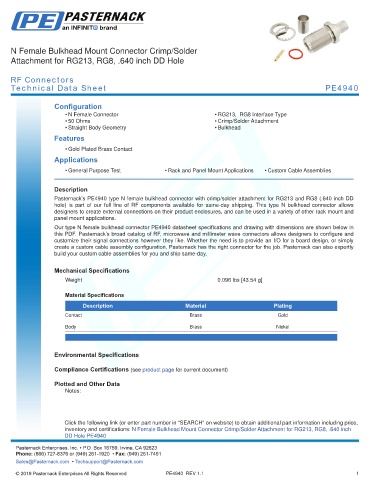

N Female Bulkhead Mount Connector Crimp/Solder
Attachment for RG213, RG8, .640 inch DD Hole

RF Connectors
Technical Data Sheet PE4940

Configuration
• N Female Connector • RG213, RG8 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Gold Plated Brass Contact
Applications
• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE4940 type N female bulkhead connector with crimp/solder attachment for RG213 and RG8 (.640 inch DD
hole) is part of our full line of RF components available for same-day shipping. This type N bulkhead connector allows
designers to create external connections on their product enclosures, and can be used in a variety of other rack mount and
panel mount applications.
Our type N female bulkhead connector PE4940 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications
.
Weight 0.096 lbs [43.54 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold

Body Brass Nickel
.

Environmental Specifications

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Connector Crimp/Solder Attachment for RG213, RG8, .640 inch -
DD Hole PE4940 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4940 REV 1.1 1
