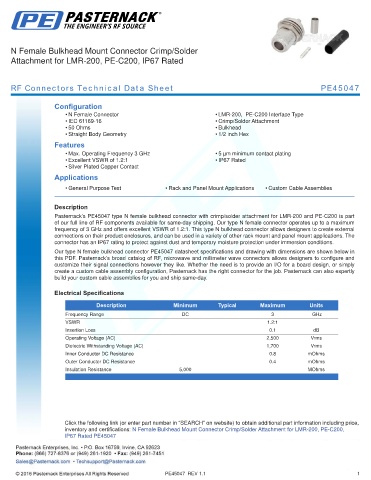

N Female Bulkhead Mount Connector Crimp/Solder
Attachment for LMR-200, PE-C200, IP67 Rated

RF Connectors Technical Data Sheet PE45047

Configuration
• N Female Connector • LMR-200, PE-C200 Interface Type
• IEC 61169-16 • Crimp/Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry • 1/2 inch Hex
Features
• Max. Operating Frequency 3 GHz • 5 µm minimum contact plating
• Excellent VSWR of 1.2:1 • IP67 Rated
• Silver Plated Copper Contact
Applications
• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE45047 type N female bulkhead connector with crimp/solder attachment for LMR-200 and PE-C200 is part
of our full line of RF components available for same-day shipping. Our type N female connector operates up to a maximum
frequency of 3 GHz and offers excellent VSWR of 1.2:1. This type N bulkhead connector allows designers to create external
connections on their product enclosures, and can be used in a variety of other rack mount and panel mount applications. The
connector has an IP67 rating to protect against dust and temporary moisture protection under immersion conditions.
Our type N female bulkhead connector PE45047 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.2:1
Insertion Loss 0.1 dB
Operating Voltage (AC) 2,500 Vrms
Dielectric Withstanding Voltage (AC) 1,700 Vrms
Inner Conductor DC Resistance 0.8 mOhms
Outer Conductor DC Resistance 0.4 mOhms
Insulation Resistance 5,000 MOhms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Connector Crimp/Solder Attachment for LMR-200, PE-C200,
IP67 Rated PE45047

PE45047 REV 1.1 1
