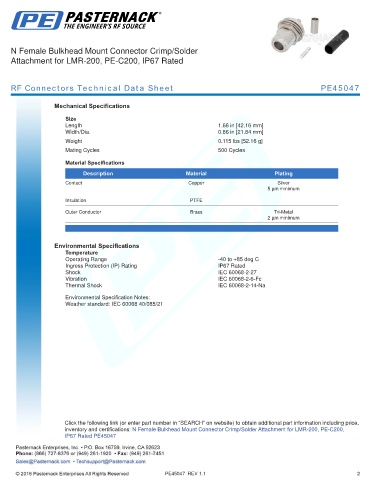

N Female Bulkhead Mount Connector Crimp/Solder
Attachment for LMR-200, PE-C200, IP67 Rated

RF Connectors Technical Data Sheet PE45047

Mechanical Specifications

Size
Length 1.66 in [42.16 mm]
Width/Dia. 0.86 in [21.84 mm]
.
Weight 0.115 lbs [52.16 g]
.
Mating Cycles 500 Cycles
Material Specifications
Description Material Plating
Contact Copper Silver
5 µm minimum

Insulation PTFE
Outer Conductor Brass Tri-Metal
2 µm minimum
.

Environmental Specifications
Temperature
Operating Range -40 to +85 deg C
Ingress Protection (IP) Rating IP67 Rated
Shock IEC 60068-2-27
Vibration IEC 60068-2-6-Fc
Thermal Shock IEC 60068-2-14-Na

Environmental Specification Notes:
Weather standard: IEC 60068 40/085/21

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Connector Crimp/Solder Attachment for LMR-200, PE-C200,
IP67 Rated PE45047
