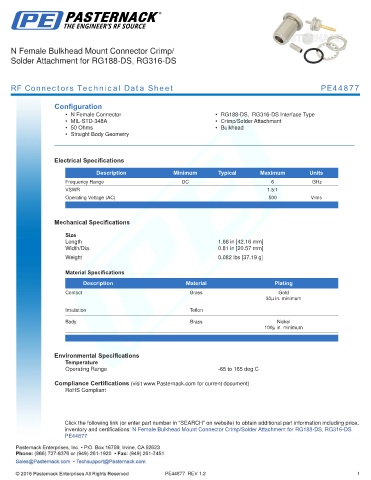

N Female Bulkhead Mount Connector Crimp/
Solder Attachment for RG188-DS, RG316-DS

RF Connectors Technical Data Sheet PE44877

Configuration
• N Female Connector • RG188-DS, RG316-DS Interface Type
• MIL-STD-348A • Crimp/Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.66 in [42.16 mm]
Width/Dia. 0.81 in [20.57 mm]
.
Weight 0.082 lbs [37.19 g]
.
Material Specifications

Description Material Plating
Contact Brass Gold
30µ in. minimum
Insulation Teflon

Body Brass Nickel
100µ in. minimum
.

Environmental Specifications
Temperature
Operating Range -65 to 165 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Connector Crimp/Solder Attachment for RG188-DS, RG316-DS
PE44877

PE44877 REV 1.2 1
