N Female Bulkhead Connector Crimp/Solder Attachment
For PE-C400, 0.400 inch, .640 inch DD Hole

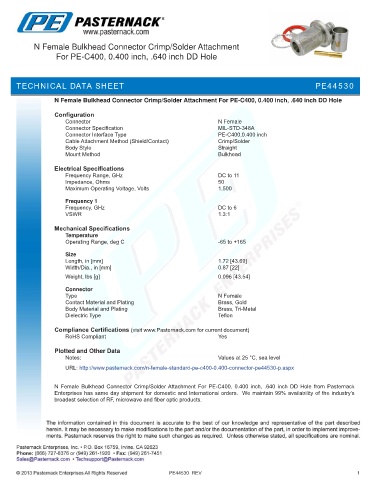

TECHNICAL DATA SHEET PE44530

N Female Bulkhead Connector Crimp/Solder Attachment For PE-C400, 0.400 inch, .640 inch DD Hole

Configuration
Connector N Female
Connector Specification MIL-STD-348A
Connector Interface Type PE-C400,0.400 inch
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Frequency Range, GHz DC to 11
Impedance, Ohms 50
Maximum Operating Voltage, Volts 1,500

Frequency 1
Frequency, GHz DC to 6
VSWR 1.3:1

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165

Size
Length, in [mm] 1.72 [43.69]
Width/Dia., in [mm] 0.87 [22]
.
Weight, lbs [g] 0.096 [43.54]
Connector
Type N Female
Contact Material and Plating Brass, Gold
Body Material and Plating Brass, Tri-Metal
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level
URL: http://www.pasternack.com/n-female-standard-pe-c400-0.400-connector-pe44530-p.aspx

N Female Bulkhead Connector Crimp/Solder Attachment For PE-C400, 0.400 inch, .640 inch DD Hole from Pasternack
Enterprises has same day shipment for domestic and International orders. We maintain 99% availability of the industry’s
broadest selection of RF, microwave and fiber optic products.

PE44530 REV 1
