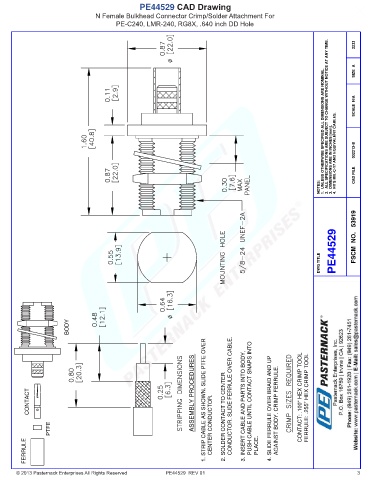

PE44529 CAD Drawing
N Female Bulkhead Connector Crimp/Solder Attachment For
PE-C240, LMR-240, RG8X, .640 inch DD Hole

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
2233

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 032213-B

NOTES: CAD FILE

PE44529 FSCM NO. 53919

DWG TITLE

BODY

ASSEMBLY PROCEDURES

CONTACT 1. STRIP CABLE AS SHOWN. SLIDE PTFE OVER CONDUCTOR. SLIDE FERRULE OVER CABLE. 3. INSERT CABLE AND PARTS INTO BODY, PUSH CABLE UNTIL CONTACT SNAPS INTO 4. SLIDE FERRULE OVER BRAID AND UP AGAINST BODY. CRIMP FERRULE. CONTACT: .100" HEX CRIMP TOOL FERRULE: .255" HEX CRIMP TOOL

PTFE CENTER CONDUCTOR. 2. SOLDER CONTACT TO CENTER

FERRULE PLACE.

© 2013 Pasternack Enterprises All Rights Reserved PE44529 REV 01 3
