N Female Bulkhead Connector Crimp/Solder Attachment
For PE-C240, LMR-240, RG8X, .640 inch DD Hole

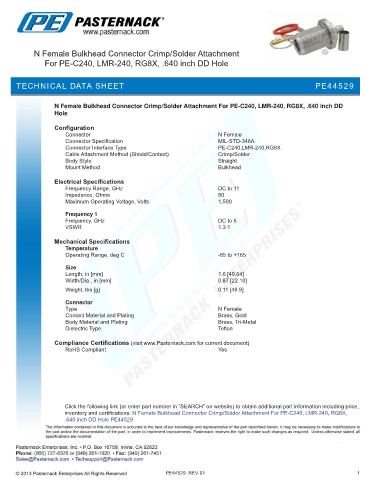

TECHNICAL DATA SHEET PE44529

N Female Bulkhead Connector Crimp/Solder Attachment For PE-C240, LMR-240, RG8X, .640 inch DD
Hole

Configuration
Connector N Female
Connector Specification MIL-STD-348A
Connector Interface Type PE-C240,LMR-240,RG8X
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Frequency Range, GHz DC to 11
Impedance, Ohms 50
Maximum Operating Voltage, Volts 1,500
Frequency 1
Frequency, GHz DC to 6
VSWR 1.3:1

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165
Size
Length, in [mm] 1.6 [40.64]
Width/Dia., in [mm] 0.87 [22.10]
.
Weight, lbs [g] 0.11 [49.9]

Connector
Type N Female
Contact Material and Plating Brass, Gold
Body Material and Plating Brass, Tri-Metal
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Connector Crimp/Solder Attachment For PE-C240, LMR-240, RG8X,
.640 inch DD Hole PE44529

PE44529 REV 01 1
