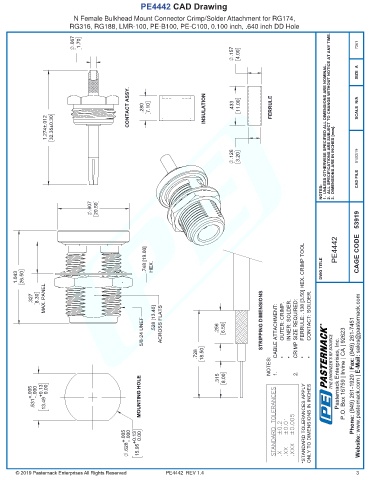

PE4442 CAD Drawing
N Female Bulkhead Mount Connector Crimp/Solder Attachment for RG174,
RG316, RG188, LMR-100, PE-B100, PE-C100, 0.100 inch, .640 inch DD Hole

.067 1.70 7361

.157 4.00

SIZE A

CONTACT ASSY. .280 7.10 INSULATION .433 11.00 FERRULE SCALE N/A

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
1.274±.012 32.35±0.30 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

.126 3.20 3. DIMENSIONS ARE IN INCHES [mm]. 01/02/19

NOTES: CAD FILE

.807 20.50

.748 [19.00] PE4442 CAGE CODE 53919

HEX. DWG TITLE
1.043 26.50

FERRULE: .138 [3.50] HEX. CRIMP TOOL
.327 8.30 MAX. PANEL

5/8-24 UNEF .528 [13.40] ACROSS FLATS .256 6.50 STRIPPING DIMENSIONS CABLE ATTACHMENT: OUTER: CRIMP. INNER: SOLDER. CRIMP SIZE REQUIRED: CONTACT: SOLDER. R

.728 18.50 • • • •

NOTES: THE ENGINEER'S RF SOURCE
1. 2. Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623
.315 8.00 Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
.531 +.005 -.000 13.49 +0.13 0.00 MOUNTING HOLE

STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES
.XXX ±0.005
.XX ±0.01
-.000
.628 +.005 15.95 +0.13 .X ±0.2
0.00
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -

PE4442 REV 1.4 3
