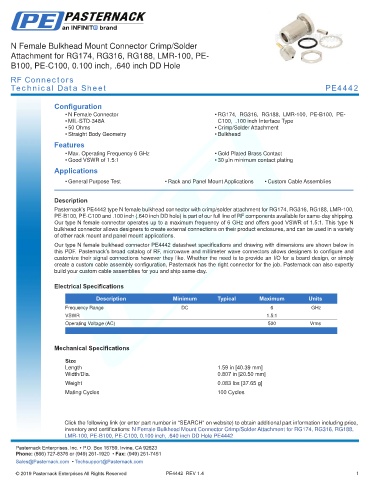

N Female Bulkhead Mount Connector Crimp/Solder
Attachment for RG174, RG316, RG188, LMR-100, PE-
B100, PE-C100, 0.100 inch, .640 inch DD Hole

RF Connectors
Technical Data Sheet PE4442

Configuration
• N Female Connector • RG174, RG316, RG188, LMR-100, PE-B100, PE-
• MIL-STD-348A C100, .100 inch Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Max. Operating Frequency 6 GHz • Gold Plated Brass Contact
• Good VSWR of 1.5:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE4442 type N female bulkhead connector with crimp/solder attachment for RG174, RG316, RG188, LMR-100,
PE-B100, PE-C100 and .100 inch (.640 inch DD hole) is part of our full line of RF components available for same-day shipping.
Our type N female connector operates up to a maximum frequency of 6 GHz and offers good VSWR of 1.5:1. This type N
bulkhead connector allows designers to create external connections on their product enclosures, and can be used in a variety
of other rack mount and panel mount applications.
Our type N female bulkhead connector PE4442 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.5:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.59 in [40.39 mm]
Width/Dia. 0.807 in [20.50 mm]
.
Weight 0.083 lbs [37.65 g]
.
Mating Cycles 100 Cycles

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Connector Crimp/Solder Attachment for RG174, RG316, RG188,
-
LMR-100, PE-B100, PE-C100, 0.100 inch, .640 inch DD Hole PE4442 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4442 REV 1.4 1
