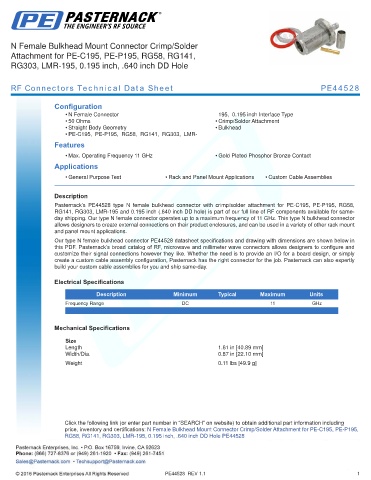

N Female Bulkhead Mount Connector Crimp/Solder
Attachment for PE-C195, PE-P195, RG58, RG141,
RG303, LMR-195, 0.195 inch, .640 inch DD Hole

RF Connectors Technical Data Sheet PE44528

Configuration
• N Female Connector 195, 0.195 inch Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry • Bulkhead
• PE-C195, PE-P195, RG58, RG141, RG303, LMR-
Features
• Max. Operating Frequency 11 GHz • Gold Plated Phosphor Bronze Contact
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE44528 type N female bulkhead connector with crimp/solder attachment for PE-C195, PE-P195, RG58,
RG141, RG303, LMR-195 and 0.195 inch (.640 inch DD hole) is part of our full line of RF components available for same-
day shipping. Our type N female connector operates up to a maximum frequency of 11 GHz. This type N bulkhead connector
allows designers to create external connections on their product enclosures, and can be used in a variety of other rack mount
and panel mount applications.
Our type N female bulkhead connector PE44528 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
.

Mechanical Specifications

Size
Length 1.61 in [40.89 mm]
Width/Dia. 0.87 in [22.10 mm]
.
Weight 0.11 lbs [49.9 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Female Bulkhead Mount Connector Crimp/Solder Attachment for PE-C195, PE-P195,
RG58, RG141, RG303, LMR-195, 0.195 inch, .640 inch DD Hole PE44528

PE44528 REV 1.1 1
