N Female Bulkhead Mount Connector Solder Attachment for PE-
SR402AL, PE-SR402FL, PE-SR402FLJ, PE-SR402TN, RG402

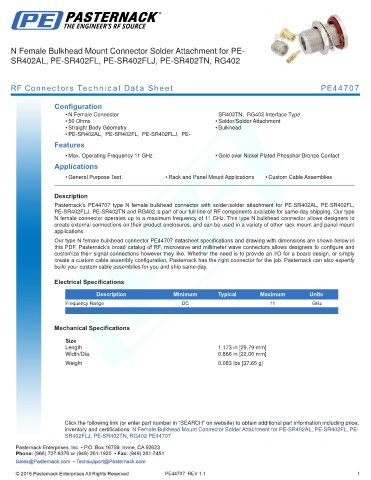

RF Connectors Technical Data Sheet PE44707

Configuration
• N Female Connector SR402TN, RG402 Interface Type
• 50 Ohms • Solder/Solder Attachment
• Straight Body Geometry • Bulkhead
• PE-SR402AL, PE-SR402FL, PE-SR402FLJ, PE-
Features
• Max. Operating Frequency 11 GHz • Gold over Nickel Plated Phosphor Bronze Contact
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE44707 type N female bulkhead connector with solder/solder attachment for PE-SR402AL, PE-SR402FL,
PE-SR402FLJ, PE-SR402TN and RG402 is part of our full line of RF components available for same-day shipping. Our type
N female connector operates up to a maximum frequency of 11 GHz. This type N bulkhead connector allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our type N female bulkhead connector PE44707 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
.

Mechanical Specifications

Size
Length 1.173 in [29.79 mm]
Width/Dia. 0.866 in [22.00 mm]
.
Weight 0.083 lbs [37.65 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Connector Solder Attachment for PE-SR402AL, PE-SR402FL, PE-
SR402FLJ, PE-SR402TN, RG402 PE44707
