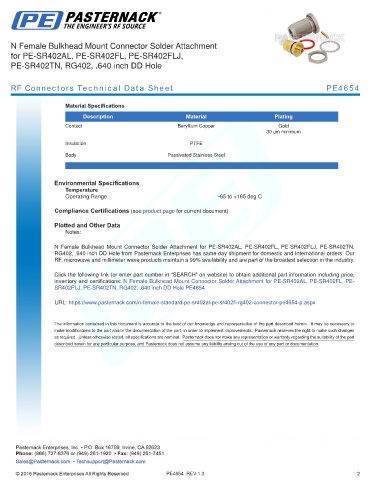

N Female Bulkhead Mount Connector Solder Attachment
for PE-SR402AL, PE-SR402FL, PE-SR402FLJ,
PE-SR402TN, RG402, .640 inch DD Hole

RF Connectors Technical Data Sheet PE4654

Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
30 µin minimum

Insulation PTFE
Body Passivated Stainless Steel

.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

N Female Bulkhead Mount Connector Solder Attachment for PE-SR402AL, PE-SR402FL, PE-SR402FLJ, PE-SR402TN,
RG402, .640 inch DD Hole from Pasternack Enterprises has same day shipment for domestic and International orders. Our
RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Connector Solder Attachment for PE-SR402AL, PE-SR402FL, PE-
SR402FLJ, PE-SR402TN, RG402, .640 inch DD Hole PE4654

URL: https://www.pasternack.com/n-female-standard-pe-sr402al-pe-sr402fl-rg402-connector-pe4654-p.aspx

PE4654 REV 1.3 2
