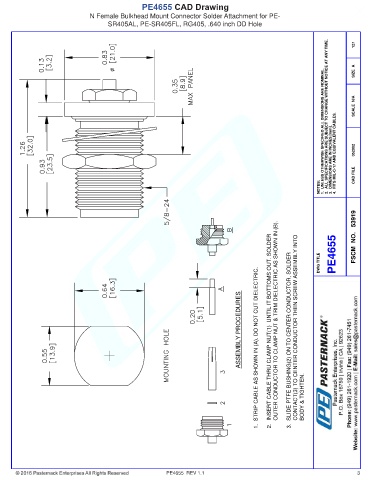

PE4655 CAD Drawing
N Female Bulkhead Mount Connector Solder Attachment for PE-
SR405AL, PE-SR405FL, RG405, .640 inch DD Hole
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 052902
NOTES: CAD FILE
DWG TITLE PE4655 FSCM NO. 53919
ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN IN (A). DO NOT CUT DIELECTRIC. 2. INSERT CABLE THRU CLAMP NUT(1) UNTIL IT BOTTOMS OUT. SOLDER OUTER CONDUCTOR TO CLAMP NUT & TRIM DIELECTRIC AS SHOWN IN (B). 3. SLIDE PTFE BUSHING(2) ON TO CENTER CONDUCTOR, SOLDER CONTACT(3) TO CENTER CONDUCTOR THEN SCREW ASSEMBLY INTO
BODY & TIGHTEN.
PE4655 REV 1.1 3
