N Female Bulkhead Precision Connector Solder Attachment For
PE-047SR, PE-SR047AL, PE-SR047FL, .640 inch DD Hole

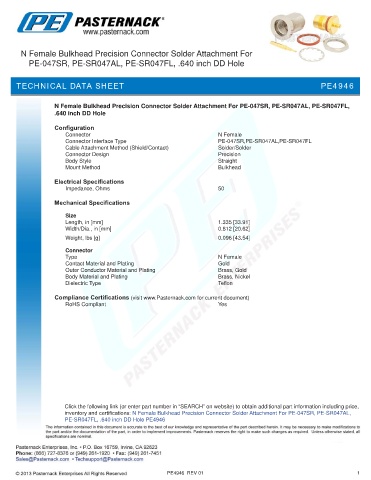

TECHNICAL DATA SHEET PE4946

N Female Bulkhead Precision Connector Solder Attachment For PE-047SR, PE-SR047AL, PE-SR047FL,
.640 inch DD Hole

Configuration
Connector N Female
Connector Interface Type PE-047SR,PE-SR047AL,PE-SR047FL
Cable Attachment Method (Shield/Contact) Solder/Solder
Connector Design Precision
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 1.335 [33.91]
Width/Dia., in [mm] 0.812 [20.62]
.
Weight, lbs [g] 0.096 [43.54]
Connector
Type N Female
Contact Material and Plating Gold
Outer Conductor Material and Plating Brass, Gold
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Precision Connector Solder Attachment For PE-047SR, PE-SR047AL,
PE-SR047FL, .640 inch DD Hole PE4946

PE4946 REV 01 1
