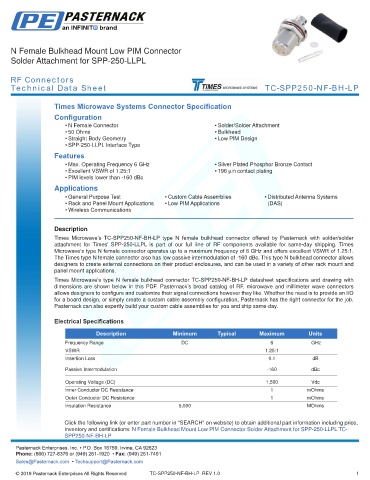

N Female Bulkhead Mount Low PIM Connector
Solder Attachment for SPP-250-LLPL

RF Connectors
Technical Data Sheet TC-SPP250-NF-BH-LP

Times Microwave Systems Connector Specification
Configuration
• N Female Connector • Solder/Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry • Low PIM Design
• SPP-250-LLPL Interface Type
Features
• Max. Operating Frequency 6 GHz • Silver Plated Phosphor Bronze Contact
• Excellent VSWR of 1.25:1 • 196 µin contact plating
• PIM levels lower than -160 dBc
Applications
• General Purpose Test • Custom Cable Assemblies • Distributed Antenna Systems
• Rack and Panel Mount Applications • Low PIM Applications (DAS)
• Wireless Communications
.
Description
Times Microwave’s TC-SPP250-NF-BH-LP type N female bulkhead connector offered by Pasternack with solder/solder
attachment for Times’ SPP-250-LLPL is part of our full line of RF components available for same-day shipping. Times
Microwave’s type N female connector operates up to a maximum frequency of 6 GHz and offers excellent VSWR of 1.25:1.
The Times type N female connector also has low passive intermodulation of -160 dBc. This type N bulkhead connector allows
designers to create external connections on their product enclosures, and can be used in a variety of other rack mount and
panel mount applications.
Times Microwave’s type N female bulkhead connector TC-SPP250-NF-BH-LP datasheet specifications and drawing with
dimensions are shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors
allows designers to configure and customize their signal connections however they like. Whether the need is to provide an I/O
for a board design, or simply create a custom cable assembly configuration, Pasternack has the right connector for the job.
Pasternack can also expertly build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.25:1
Insertion Loss 0.1 dB

Passive Intermodulation -160 dBc
Operating Voltage (DC) 1,500 Vdc
Inner Conductor DC Resistance 1 mOhms
Outer Conductor DC Resistance 1 mOhms
Insulation Resistance 5,000 MOhms

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Low PIM Connector Solder Attachment for SPP-250-LLPL TC- -
SPP250-NF-BH-LP Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

TC-SPP250-NF-BH-LP REV 1.0 1
