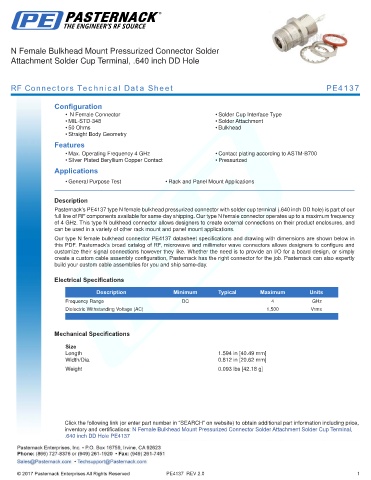

N Female Bulkhead Mount Pressurized Connector Solder
Attachment Solder Cup Terminal, .640 inch DD Hole

RF Connectors Technical Data Sheet PE4137

Configuration
• N Female Connector • Solder Cup Interface Type
• MIL-STD-348 • Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Max. Operating Frequency 4 GHz • Contact plating according to ASTM-B700
• Silver Plated Beryllium Copper Contact • Pressurized
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4137 type N female bulkhead pressurized connector with solder cup terminal (.640 inch DD hole) is part of our
full line of RF components available for same-day shipping. Our type N female connector operates up to a maximum frequency
of 4 GHz. This type N bulkhead connector allows designers to create external connections on their product enclosures, and
can be used in a variety of other rack mount and panel mount applications.
Our type N female bulkhead connector PE4137 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
Dielectric Withstanding Voltage (AC) 1,500 Vrms
.

Mechanical Specifications

Size
Length 1.594 in [40.49 mm]
Width/Dia. 0.812 in [20.62 mm]
.
Weight 0.093 lbs [42.18 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Pressurized Connector Solder Attachment Solder Cup Terminal,
.640 inch DD Hole PE4137
