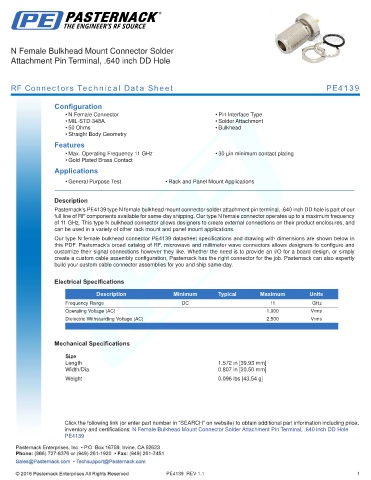

N Female Bulkhead Mount Connector Solder
Attachment Pin Terminal, .640 inch DD Hole

RF Connectors Technical Data Sheet PE4139

Configuration
• N Female Connector • Pin Interface Type
• MIL-STD-348A • Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Max. Operating Frequency 11 GHz • 30 µin minimum contact plating
• Gold Plated Brass Contact
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4139 type N female bulkhead mount connector solder attachment pin terminal, .640 inch DD hole is part of our
full line of RF components available for same-day shipping. Our type N female connector operates up to a maximum frequency
of 11 GHz. This type N bulkhead connector allows designers to create external connections on their product enclosures, and
can be used in a variety of other rack mount and panel mount applications.
Our type N female bulkhead connector PE4139 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
Operating Voltage (AC) 1,000 Vrms
Dielectric Withstanding Voltage (AC) 2,500 Vrms
.

Mechanical Specifications

Size
Length 1.572 in [39.93 mm]
Width/Dia. 0.807 in [20.50 mm]
.
Weight 0.096 lbs [43.54 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Connector Solder Attachment Pin Terminal, .640 inch DD Hole
PE4139
