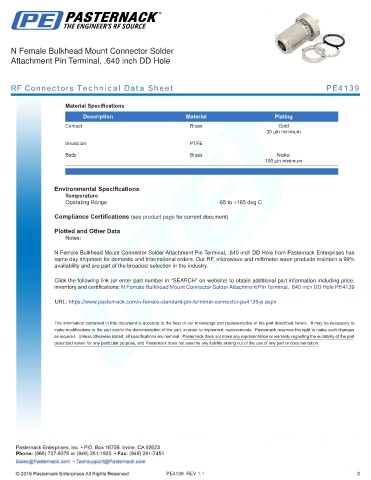

N Female Bulkhead Mount Connector Solder
Attachment Pin Terminal, .640 inch DD Hole

RF Connectors Technical Data Sheet PE4139

Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum

Insulation PTFE
Body Brass Nickel
100 µin minimum

.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

N Female Bulkhead Mount Connector Solder Attachment Pin Terminal, .640 inch DD Hole from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Connector Solder Attachment Pin Terminal, .640 inch DD Hole PE4139

URL: https://www.pasternack.com/n-female-standard-pin-terminal-connector-pe4139-p.aspx

PE4139 REV 1.1 2
