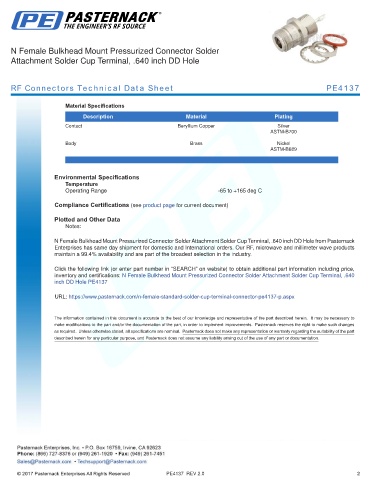

N Female Bulkhead Mount Pressurized Connector Solder
Attachment Solder Cup Terminal, .640 inch DD Hole

RF Connectors Technical Data Sheet PE4137

Material Specifications
Description Material Plating
Contact Beryllium Copper Silver
ASTM-B700

Body Brass Nickel
ASTM-B689
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

N Female Bulkhead Mount Pressurized Connector Solder Attachment Solder Cup Terminal, .640 inch DD Hole from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99.4% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Pressurized Connector Solder Attachment Solder Cup Terminal, .640
inch DD Hole PE4137

URL: https://www.pasternack.com/n-female-standard-solder-cup-terminal-connector-pe4137-p.aspx

PE4137 REV 2.0 2
