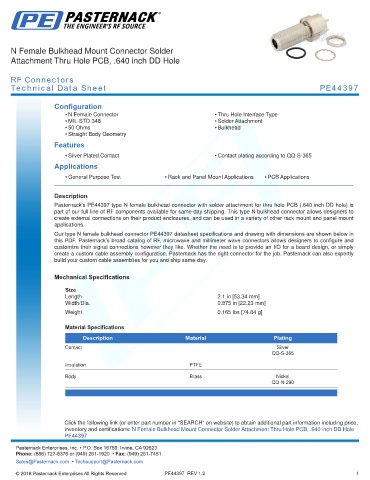

N Female Bulkhead Mount Connector Solder
Attachment Thru Hole PCB, .640 inch DD Hole

RF Connectors
Technical Data Sheet PE44397

Configuration
• N Female Connector • Thru Hole Interface Type
• MIL-STD-348 • Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications

• General Purpose Test • Rack and Panel Mount Applications • PCB Applications
.
Description
Pasternack’s PE44397 type N female bulkhead connector with solder attachment for thru hole PCB (.640 inch DD hole) is
part of our full line of RF components available for same-day shipping. This type N bulkhead connector allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our type N female bulkhead connector PE44397 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 2.1 in [53.34 mm]
Width/Dia. 0.875 in [22.23 mm]
.
Weight 0.165 lbs [74.84 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365

Insulation PTFE
Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Connector Solder Attachment Thru Hole PCB, .640 inch DD Hole
-
PE44397 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44397 REV 1.2 1
