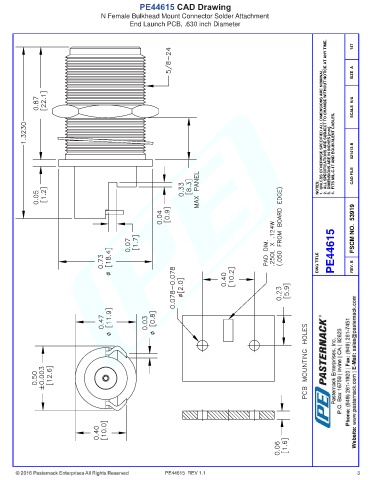

PE44615 CAD Drawing
N Female Bulkhead Mount Connector Solder Attachment
End Launch PCB, .630 inch Diameter
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
147
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 021413-B
NOTES: CAD FILE
PE44615 FSCM NO. 53919
DWG TITLE REV. B
PE44615 REV 1.1 3
