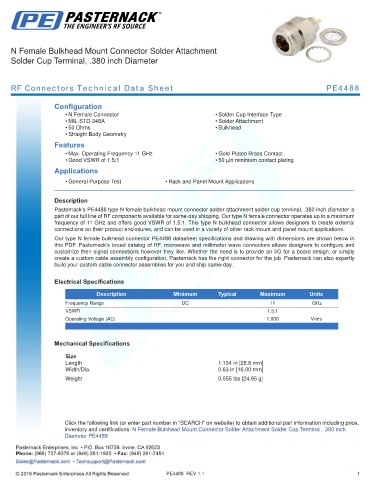

N Female Bulkhead Mount Connector Solder Attachment
Solder Cup Terminal, .380 inch Diameter

RF Connectors Technical Data Sheet PE4488

Configuration
• N Female Connector • Solder Cup Interface Type
• MIL-STD-348A • Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Max. Operating Frequency 11 GHz • Gold Plated Brass Contact
• Good VSWR of 1.5:1 • 50 µin minimum contact plating
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4488 type N female bulkhead mount connector solder attachment solder cup terminal, .380 inch diameter is
part of our full line of RF components available for same-day shipping. Our type N female connector operates up to a maximum
frequency of 11 GHz and offers good VSWR of 1.5:1. This type N bulkhead connector allows designers to create external
connections on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our type N female bulkhead connector PE4488 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.5:1
Operating Voltage (AC) 1,000 Vrms
.

Mechanical Specifications

Size
Length 1.134 in [28.8 mm]
Width/Dia. 0.63 in [16.00 mm]
.
Weight 0.055 lbs [24.95 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .380 inch
Diameter PE4488
