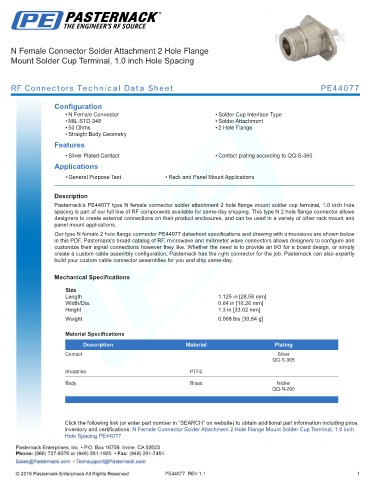

N Female Connector Solder Attachment 2 Hole Flange
Mount Solder Cup Terminal, 1.0 inch Hole Spacing

RF Connectors Technical Data Sheet PE44077

Configuration
• N Female Connector • Solder Cup Interface Type
• MIL-STD-348 • Solder Attachment
• 50 Ohms • 2 Hole Flange
• Straight Body Geometry
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE44077 type N female connector solder attachment 2 hole flange mount solder cup terminal, 1.0 inch hole
spacing is part of our full line of RF components available for same-day shipping. This type N 2 hole flange connector allows
designers to create external connections on their product enclosures, and can be used in a variety of other rack mount and
panel mount applications.
Our type N female 2 hole flange connector PE44077 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.125 in [28.58 mm]
Width/Dia. 0.64 in [16.26 mm]
Height 1.3 in [33.02 mm]
.
Weight 0.068 lbs [30.84 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE
Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Solder Attachment 2 Hole Flange Mount Solder Cup Terminal, 1.0 inch
Hole Spacing PE44077

PE44077 REV 1.1 1
