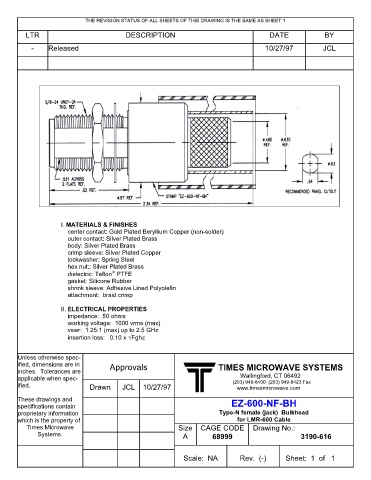

THE REVISION STATUS OF ALL SHEETS OF THIS DRAWING IS THE SAME AS SHEET 1
LTR DESCRIPTION DATE BY

- Released 10/27/97 JCL

I. MATERIALS & FINISHES
center contact: Gold Plated Beryllium Copper (non-solder)
outer contact: Silver Plated Brass
body: Silver Plated Brass
crimp sleeve: Silver Plated Copper
lockwasher: Spring Steel
hex nut:: Silver Plated Brass

dielectric: Teflon PTFE
gasket: Silicone Rubber
shrink sleeve: Adhesive Lined Polyolefin
attachment: braid crimp

II. ELECTRICAL PROPERTIES
impedance: 50 ohms
working voltage: 1000 vrms (max)
vswr: 1.25:1 (max) up to 2.5 GHz
insertion loss: 0.10 x √Fghz

Unless otherwise spec-

ified, dimensions are in
Approvals TIMES MICROWAVE SYSTEMS
inches. Tolerances are
applicable when spec- Wallingford, CT 06492

(203) 949-8400; (203) 949-8423.Fax

ified. Drawn JCL 10/27/97 www.timesmicrowave.com

These drawings and

specifications contain EZ-600-NF-BH

proprietary information Type-N female (jack) Bulkhead
which is the property of for LMR-600 Cable
Times Microwave Size CAGE CODE Drawing No.:
Systems. A 68999 3190-616

Scale: NA Rev. (-) Sheet: 1 of 1
