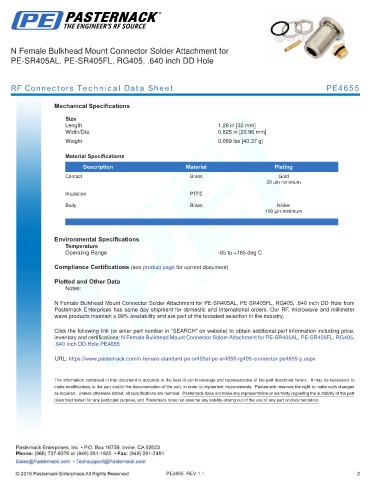

N Female Bulkhead Mount Connector Solder Attachment for
PE-SR405AL, PE-SR405FL, RG405, .640 inch DD Hole

RF Connectors Technical Data Sheet PE4655

Mechanical Specifications

Size
Length 1.26 in [32 mm]
Width/Dia. 0.825 in [20.96 mm]
.
Weight 0.089 lbs [40.37 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum
Insulation PTFE

Body Brass Nickel
100 µin minimum
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

N Female Bulkhead Mount Connector Solder Attachment for PE-SR405AL, PE-SR405FL, RG405, .640 inch DD Hole from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Connector Solder Attachment for PE-SR405AL, PE-SR405FL, RG405,
.640 inch DD Hole PE4655
