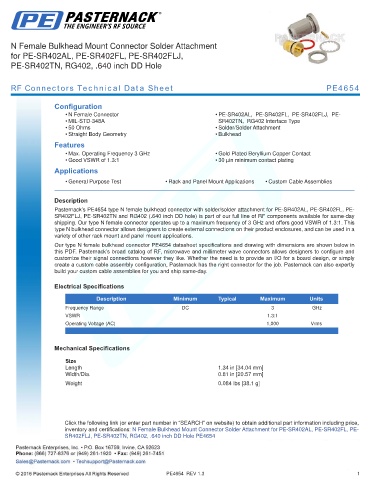

N Female Bulkhead Mount Connector Solder Attachment
for PE-SR402AL, PE-SR402FL, PE-SR402FLJ,
PE-SR402TN, RG402, .640 inch DD Hole

RF Connectors Technical Data Sheet PE4654

Configuration
• N Female Connector • PE-SR402AL, PE-SR402FL, PE-SR402FLJ, PE-
• MIL-STD-348A SR402TN, RG402 Interface Type
• 50 Ohms • Solder/Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Max. Operating Frequency 3 GHz • Gold Plated Beryllium Copper Contact
• Good VSWR of 1.3:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE4654 type N female bulkhead connector with solder/solder attachment for PE-SR402AL, PE-SR402FL, PE-
SR402FLJ, PE-SR402TN and RG402 (.640 inch DD hole) is part of our full line of RF components available for same-day
shipping. Our type N female connector operates up to a maximum frequency of 3 GHz and offers good VSWR of 1.3:1. This
type N bulkhead connector allows designers to create external connections on their product enclosures, and can be used in a
variety of other rack mount and panel mount applications.
Our type N female bulkhead connector PE4654 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.3:1
Operating Voltage (AC) 1,000 Vrms
.

Mechanical Specifications

Size
Length 1.34 in [34.04 mm]
Width/Dia. 0.81 in [20.57 mm]
.
Weight 0.084 lbs [38.1 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead Mount Connector Solder Attachment for PE-SR402AL, PE-SR402FL, PE-
SR402FLJ, PE-SR402TN, RG402, .640 inch DD Hole PE4654
