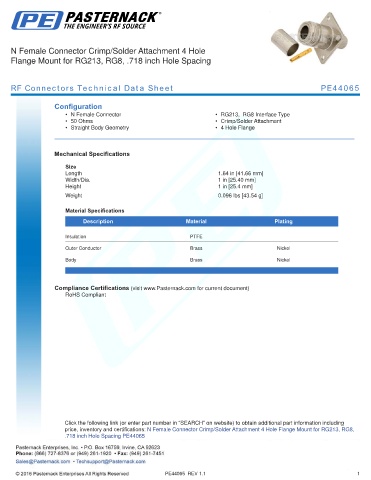

N Female Connector Crimp/Solder Attachment 4 Hole
Flange Mount for RG213, RG8, .718 inch Hole Spacing

RF Connectors Technical Data Sheet PE44065

Configuration
• N Female Connector • RG213, RG8 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry • 4 Hole Flange
.

Mechanical Specifications

Size
Length 1.64 in [41.66 mm]
Width/Dia. 1 in [25.40 mm]
Height 1 in [25.4 mm]
.
Weight 0.096 lbs [43.54 g]
.
Material Specifications
Description Material Plating

Insulation PTFE
Outer Conductor Brass Nickel

Body Brass Nickel
.

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Female Connector Crimp/Solder Attachment 4 Hole Flange Mount for RG213, RG8,
.718 inch Hole Spacing PE44065

PE44065 REV 1.1 1
