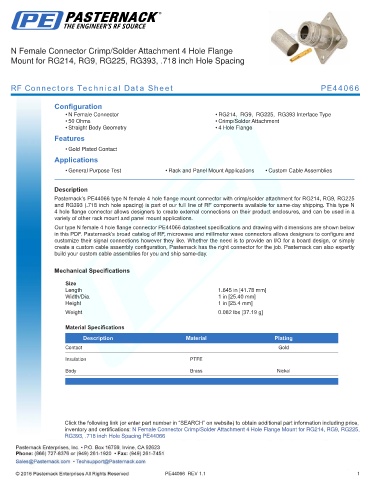

N Female Connector Crimp/Solder Attachment 4 Hole Flange
Mount for RG214, RG9, RG225, RG393, .718 inch Hole Spacing

RF Connectors Technical Data Sheet PE44066

Configuration
• N Female Connector • RG214, RG9, RG225, RG393 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry • 4 Hole Flange
Features
• Gold Plated Contact
Applications
• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE44066 type N female 4 hole flange mount connector with crimp/solder attachment for RG214, RG9, RG225
and RG393 (.718 inch hole spacing) is part of our full line of RF components available for same-day shipping. This type N
4 hole flange connector allows designers to create external connections on their product enclosures, and can be used in a
variety of other rack mount and panel mount applications.
Our type N female 4 hole flange connector PE44066 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.645 in [41.78 mm]
Width/Dia. 1 in [25.40 mm]
Height 1 in [25.4 mm]
.
Weight 0.082 lbs [37.19 g]
.
Material Specifications
Description Material Plating
Contact Gold
Insulation PTFE

Body Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Crimp/Solder Attachment 4 Hole Flange Mount for RG214, RG9, RG225,
RG393, .718 inch Hole Spacing PE44066

PE44066 REV 1.1 1
