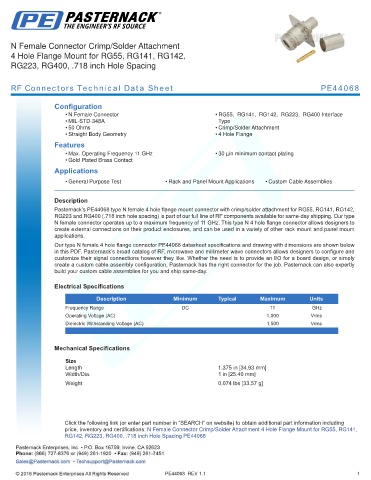

N Female Connector Crimp/Solder Attachment
4 Hole Flange Mount for RG55, RG141, RG142,
RG223, RG400, .718 inch Hole Spacing

RF Connectors Technical Data Sheet PE44068

Configuration
• N Female Connector • RG55, RG141, RG142, RG223, RG400 Interface
• MIL-STD-348A Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry • 4 Hole Flange
Features
• Max. Operating Frequency 11 GHz • 30 µin minimum contact plating
• Gold Plated Brass Contact
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE44068 type N female 4 hole flange mount connector with crimp/solder attachment for RG55, RG141, RG142,
RG223 and RG400 (.718 inch hole spacing) is part of our full line of RF components available for same-day shipping. Our type
N female connector operates up to a maximum frequency of 11 GHz. This type N 4 hole flange connector allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our type N female 4 hole flange connector PE44068 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
Operating Voltage (AC) 1,000 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
.

Mechanical Specifications

Size
Length 1.375 in [34.93 mm]
Width/Dia. 1 in [25.40 mm]
.
Weight 0.074 lbs [33.57 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Female Connector Crimp/Solder Attachment 4 Hole Flange Mount for RG55, RG141,
RG142, RG223, RG400, .718 inch Hole Spacing PE44068

PE44068 REV 1.1 1
