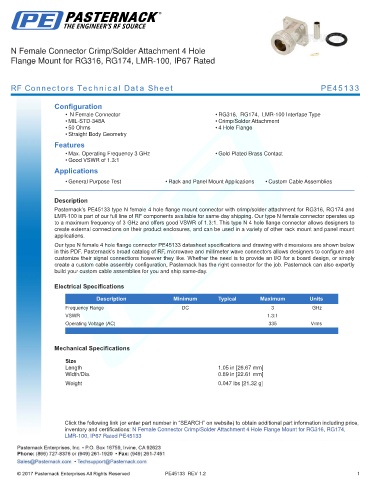

N Female Connector Crimp/Solder Attachment 4 Hole
Flange Mount for RG316, RG174, LMR-100, IP67 Rated

RF Connectors Technical Data Sheet PE45133

Configuration
• N Female Connector • RG316, RG174, LMR-100 Interface Type
• MIL-STD-348A • Crimp/Solder Attachment
• 50 Ohms • 4 Hole Flange
• Straight Body Geometry
Features
• Max. Operating Frequency 3 GHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE45133 type N female 4 hole flange mount connector with crimp/solder attachment for RG316, RG174 and
LMR-100 is part of our full line of RF components available for same-day shipping. Our type N female connector operates up
to a maximum frequency of 3 GHz and offers good VSWR of 1.3:1. This type N 4 hole flange connector allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our type N female 4 hole flange connector PE45133 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.3:1
Operating Voltage (AC) 335 Vrms
.

Mechanical Specifications

Size
Length 1.05 in [26.67 mm]
Width/Dia. 0.89 in [22.61 mm]
.
Weight 0.047 lbs [21.32 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Crimp/Solder Attachment 4 Hole Flange Mount for RG316, RG174,
LMR-100, IP67 Rated PE45133

PE45133 REV 1.2 1
