N Female Connector Crimp/Solder Attachment 4 Hole
Flange For RG58, .718 inch Hole Spacing

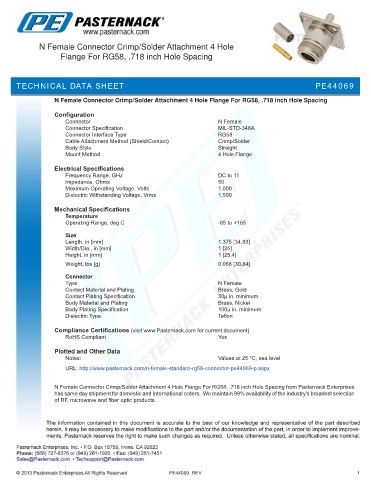

TECHNICAL DATA SHEET PE44069

N Female Connector Crimp/Solder Attachment 4 Hole Flange For RG58, .718 inch Hole Spacing

Configuration
Connector N Female
Connector Specification MIL-STD-348A
Connector Interface Type RG58
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Mount Method 4 Hole Flange

Electrical Specifications
Frequency Range, GHz DC to 11
Impedance, Ohms 50
Maximum Operating Voltage, Volts 1,000
Dielectric Withstanding Voltage, Vrms 1,500
Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165

Size
Length, in [mm] 1.375 [34.93]
Width/Dia., in [mm] 1 [25]
Height, in [mm] 1 [25.4]
.
Weight, lbs [g] 0.068 [30.84]
Connector
Type N Female
Contact Material and Plating Brass, Gold
Contact Plating Specification 30µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level
URL: http://www.pasternack.com/n-female-standard-rg58-connector-pe44069-p.aspx

N Female Connector Crimp/Solder Attachment 4 Hole Flange For RG58, .718 inch Hole Spacing from Pasternack Enterprises
has same day shipment for domestic and International orders. We maintain 99% availability of the industry’s broadest selection
of RF, microwave and fiber optic products.

PE44069 REV 1
