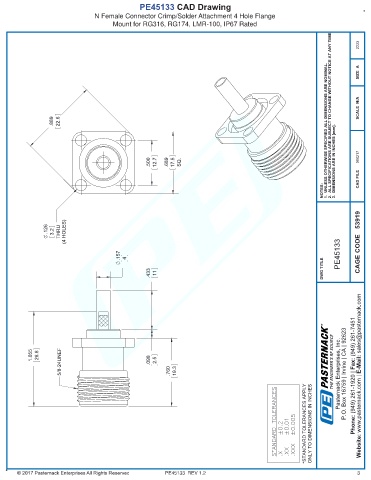

PE45133 CAD Drawing
N Female Connector Crimp/Solder Attachment 4 Hole Flange
Mount for RG316, RG174, LMR-100, IP67 Rated

2233

SIZE A

SCALE N/A

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
.889 22.6
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

080217
.500 12.7 .689 17.5 SQ. 3. DIMENSIONS ARE IN INCHES [mm].

CAD FILE

NOTES:

.126 3.2 THRU (4 HOLES) CAGE CODE 53919

.157 4 PE45133

.433 11 DWG TITLE

R

1.055 26.8 5/8-24UNEF .098 2.5 THE ENGINEER'S RF SOURCE

.760 19.3 Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE45133 REV 1.2 3
