N Female Connector Clamp/Solder Attachment
4 Hole Flange For RG58, RG55, RG141, RG142,
RG223, RG400, .718 inch Hole Spacing

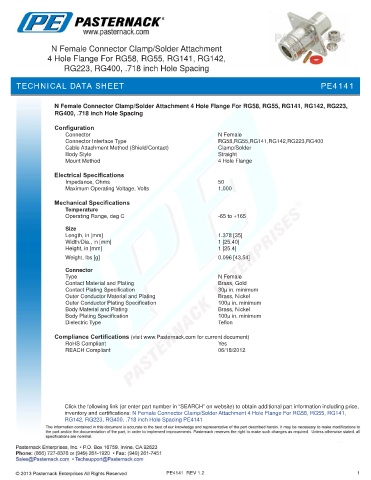

TECHNICAL DATA SHEET PE4141

N Female Connector Clamp/Solder Attachment 4 Hole Flange For RG58, RG55, RG141, RG142, RG223,
RG400, .718 inch Hole Spacing

Configuration
Connector N Female
Connector Interface Type RG58,RG55,RG141,RG142,RG223,RG400
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Mount Method 4 Hole Flange

Electrical Specifications
Impedance, Ohms 50
Maximum Operating Voltage, Volts 1,000

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165
Size
Length, in [mm] 1.378 [35]
Width/Dia., in [mm] 1 [25.40]
Height, in [mm] 1 [25.4]
.
Weight, lbs [g] 0.096 [43.54]
Connector
Type N Female
Contact Material and Plating Brass, Gold
Contact Plating Specification 30µ in. minimum
Outer Conductor Material and Plating Brass, Nickel
Outer Conductor Plating Specification 100µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
REACH Compliant 06/18/2012

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Clamp/Solder Attachment 4 Hole Flange For RG58, RG55, RG141,
RG142, RG223, RG400, .718 inch Hole Spacing PE4141

PE4141 REV 1.2 1
