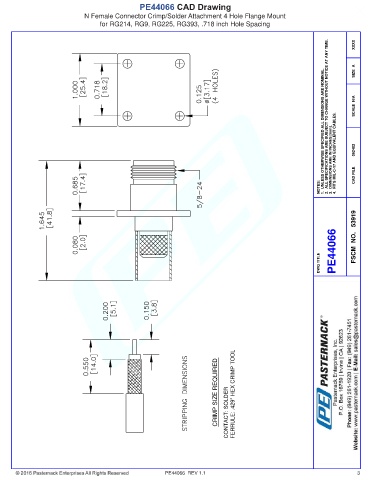

PE44066 CAD Drawing
N Female Connector Crimp/Solder Attachment 4 Hole Flange Mount
for RG214, RG9, RG225, RG393, .718 inch Hole Spacing

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 062402

NOTES: CAD FILE

PE44066 FSCM NO. 53919

DWG TITLE

CRIMP SIZE REQUIRED CONTACT: SOLDER FERRULE: .429" HEX CRIMP TOOL

PE44066 REV 1.1 3
