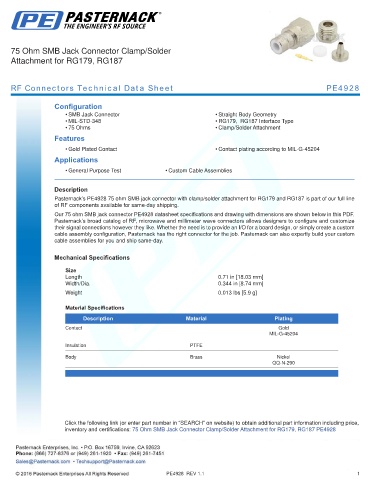

75 Ohm SMB Jack Connector Clamp/Solder
Attachment for RG179, RG187

RF Connectors Technical Data Sheet PE4928

Configuration
• SMB Jack Connector • Straight Body Geometry
• MIL-STD-348 • RG179, RG187 Interface Type
• 75 Ohms • Clamp/Solder Attachment
Features
• Gold Plated Contact • Contact plating according to MIL-G-45204
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4928 75 ohm SMB jack connector with clamp/solder attachment for RG179 and RG187 is part of our full line
of RF components available for same-day shipping.
Our 75 ohm SMB jack connector PE4928 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 0.71 in [18.03 mm]
Width/Dia. 0.344 in [8.74 mm]
.
Weight 0.013 lbs [5.9 g]
.
Material Specifications
Description Material Plating
Contact Gold
MIL-G-45204
Insulation PTFE

Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Jack Connector Clamp/Solder Attachment for RG179, RG187 PE4928

PE4928 REV 1.1 1
