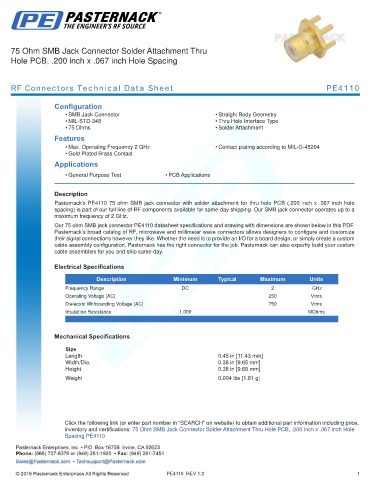

75 Ohm SMB Jack Connector Solder Attachment Thru
Hole PCB, .200 inch x .067 inch Hole Spacing

RF Connectors Technical Data Sheet PE4110

Configuration
• SMB Jack Connector • Straight Body Geometry
• MIL-STD-348 • Thru Hole Interface Type
• 75 Ohms • Solder Attachment
Features
• Max. Operating Frequency 2 GHz • Contact plating according to MIL-G-45204
• Gold Plated Brass Contact
Applications
• General Purpose Test • PCB Applications
.
Description
Pasternack’s PE4110 75 ohm SMB jack connector with solder attachment for thru hole PCB (.200 inch x .067 inch hole
spacing) is part of our full line of RF components available for same-day shipping. Our SMB jack connector operates up to a
maximum frequency of 2 GHz.
Our 75 ohm SMB jack connector PE4110 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
Operating Voltage (AC) 250 Vrms
Dielectric Withstanding Voltage (AC) 750 Vrms
Insulation Resistance 1,000 MOhms
.

Mechanical Specifications

Size
Length 0.45 in [11.43 mm]
Width/Dia. 0.38 in [9.65 mm]
Height 0.38 in [9.65 mm]
.
Weight 0.004 lbs [1.81 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Jack Connector Solder Attachment Thru Hole PCB, .200 inch x .067 inch Hole
Spacing PE4110

PE4110 REV 1.2 1
