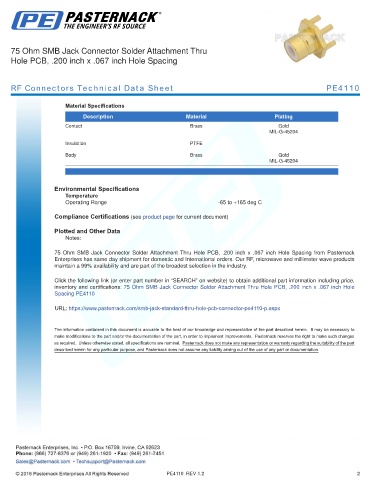

75 Ohm SMB Jack Connector Solder Attachment Thru
Hole PCB, .200 inch x .067 inch Hole Spacing

RF Connectors Technical Data Sheet PE4110

Material Specifications
Description Material Plating
Contact Brass Gold
MIL-G-45204

Insulation PTFE
Body Brass Gold
MIL-G-45204

.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

75 Ohm SMB Jack Connector Solder Attachment Thru Hole PCB, .200 inch x .067 inch Hole Spacing from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Jack Connector Solder Attachment Thru Hole PCB, .200 inch x .067 inch Hole
Spacing PE4110

URL: https://www.pasternack.com/smb-jack-standard-thru-hole-pcb-connector-pe4110-p.aspx

PE4110 REV 1.2 2
