75 Ohm SMB Jack Bulkhead Connector Clamp/Solder
Attachment For RG59, RG62, .177 inch D Hole

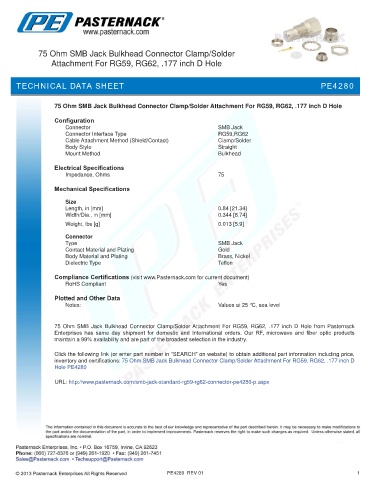

TECHNICAL DATA SHEET PE4280

75 Ohm SMB Jack Bulkhead Connector Clamp/Solder Attachment For RG59, RG62, .177 inch D Hole

Configuration
Connector SMB Jack
Connector Interface Type RG59,RG62
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 0.84 [21.34]
Width/Dia., in [mm] 0.344 [8.74]
.
Weight, lbs [g] 0.013 [5.9]
Connector
Type SMB Jack
Contact Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm SMB Jack Bulkhead Connector Clamp/Solder Attachment For RG59, RG62, .177 inch D Hole from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Jack Bulkhead Connector Clamp/Solder Attachment For RG59, RG62, .177 inch D
Hole PE4280

URL: http://www.pasternack.com/smb-jack-standard-rg59-rg62-connector-pe4280-p.aspx

PE4280 REV 01 1
