75 Ohm SMC Plug Connector Clamp/Solder
Attachment for RG59, RG62, RG71

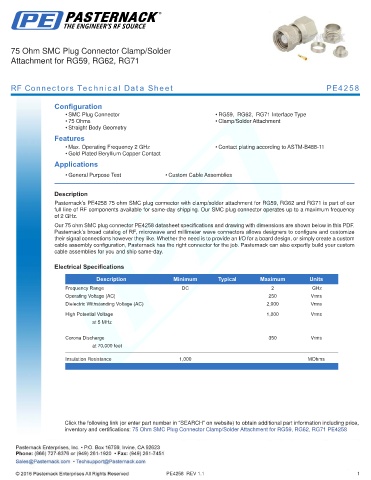

RF Connectors Technical Data Sheet PE4258

Configuration
• SMC Plug Connector • RG59, RG62, RG71 Interface Type
• 75 Ohms • Clamp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 2 GHz • Contact plating according to ASTM-B488-11
• Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4258 75 ohm SMC plug connector with clamp/solder attachment for RG59, RG62 and RG71 is part of our
full line of RF components available for same-day shipping. Our SMC plug connector operates up to a maximum frequency
of 2 GHz.
Our 75 ohm SMC plug connector PE4258 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
Operating Voltage (AC) 250 Vrms
Dielectric Withstanding Voltage (AC) 2,000 Vrms
High Potential Voltage 1,000 Vrms
at 5 MHz

Corona Discharge 350 Vrms
at 70,000 feet
Insulation Resistance 1,000 MOhms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMC Plug Connector Clamp/Solder Attachment for RG59, RG62, RG71 PE4258

PE4258 REV 1.1 1
