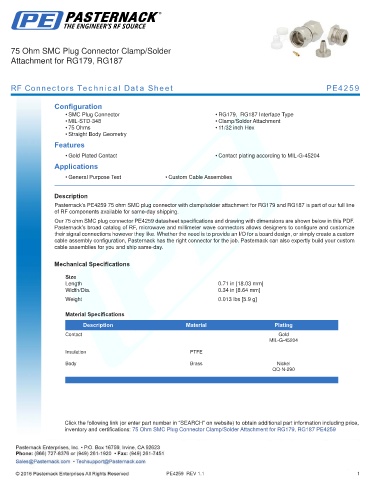

75 Ohm SMC Plug Connector Clamp/Solder
Attachment for RG179, RG187

RF Connectors Technical Data Sheet PE4259

Configuration
• SMC Plug Connector • RG179, RG187 Interface Type
• MIL-STD-348 • Clamp/Solder Attachment
• 75 Ohms • 11/32 inch Hex
• Straight Body Geometry
Features
• Gold Plated Contact • Contact plating according to MIL-G-45204
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4259 75 ohm SMC plug connector with clamp/solder attachment for RG179 and RG187 is part of our full line
of RF components available for same-day shipping.
Our 75 ohm SMC plug connector PE4259 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 0.71 in [18.03 mm]
Width/Dia. 0.34 in [8.64 mm]
.
Weight 0.013 lbs [5.9 g]
.
Material Specifications
Description Material Plating
Contact Gold
MIL-G-45204
Insulation PTFE
Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMC Plug Connector Clamp/Solder Attachment for RG179, RG187 PE4259

PE4259 REV 1.1 1
