75 Ohm SMC Plug Bulkhead Connector Solder
Attachment Solder Cup Terminal, .295 inch D Hole

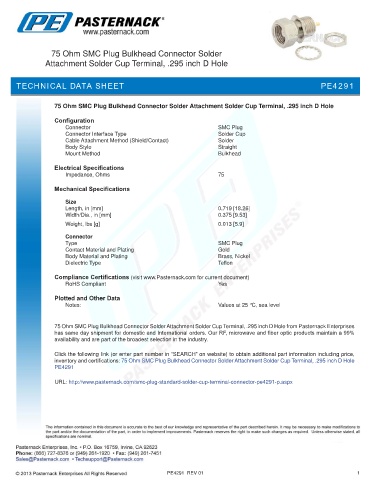

TECHNICAL DATA SHEET PE4291

75 Ohm SMC Plug Bulkhead Connector Solder Attachment Solder Cup Terminal, .295 inch D Hole

Configuration
Connector SMC Plug
Connector Interface Type Solder Cup
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 0.719 [18.26]
Width/Dia., in [mm] 0.375 [9.53]
.
Weight, lbs [g] 0.013 [5.9]
Connector
Type SMC Plug
Contact Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm SMC Plug Bulkhead Connector Solder Attachment Solder Cup Terminal, .295 inch D Hole from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMC Plug Bulkhead Connector Solder Attachment Solder Cup Terminal, .295 inch D Hole
PE4291

URL: http://www.pasternack.com/smc-plug-standard-solder-cup-terminal-connector-pe4291-p.aspx

PE4291 REV 01 1
