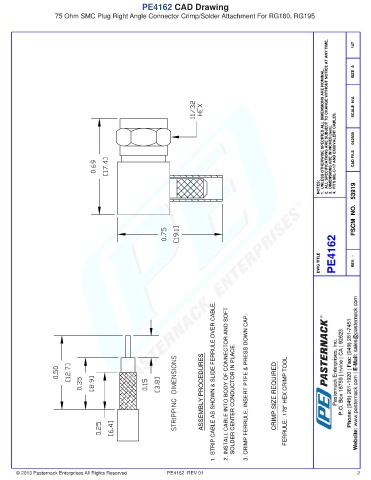

PE4162 CAD Drawing
75 Ohm SMC Plug Right Angle Connector Crimp/Solder Attachment For RG180, RG195

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
147

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 042309 CAD FILE

NOTES:
FSCM NO. 53919

DWG TITLE PE4162 REV. -

ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN & SLIDE FERRULE OVER CABLE. 2. INSTALL CABLE INTO BODY OF CONNECTOR AND SOFT SOLDER CENTER CONDUCTOR IN PLACE. 3. CRIMP FERRULE, INSERT PTFE & PRESS DOWN CAP. CRIMP SIZE REQUIRED FERRULE: .178" HEX CRIMP TOOL

© 2013 Pasternack Enterprises All Rights Reserved PE4162 REV 01 2
