75 Ohm SMC Plug Right Angle Connector Clamp/
Solder Attachment For RG59, RG62

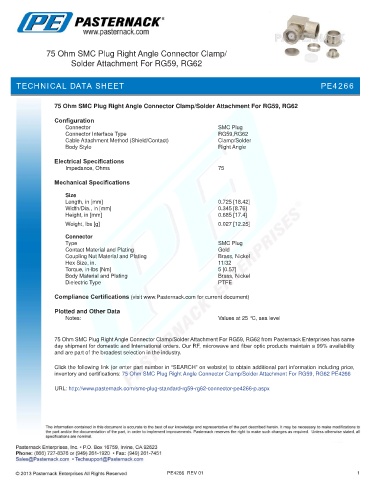

TECHNICAL DATA SHEET PE4266

75 Ohm SMC Plug Right Angle Connector Clamp/Solder Attachment For RG59, RG62

Configuration
Connector SMC Plug
Connector Interface Type RG59,RG62
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Right Angle
Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 0.725 [18.42]
Width/Dia., in [mm] 0.345 [8.76]
Height, in [mm] 0.685 [17.4]
.
Weight, lbs [g] 0.027 [12.25]
Connector
Type SMC Plug
Contact Material and Plating Gold
Coupling Nut Material and Plating Brass, Nickel
Hex Size, in. 11/32
Torque, in-lbs [Nm] 5 [0.57]
Body Material and Plating Brass, Nickel
Dielectric Type PTFE
Compliance Certifications (visit www.Pasternack.com for current document)

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm SMC Plug Right Angle Connector Clamp/Solder Attachment For RG59, RG62 from Pasternack Enterprises has same
day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMC Plug Right Angle Connector Clamp/Solder Attachment For RG59, RG62 PE4266

URL: http://www.pasternack.com/smc-plug-standard-rg59-rg62-connector-pe4266-p.aspx

PE4266 REV 01 1
