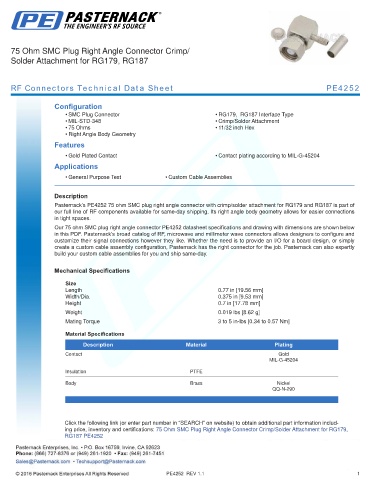

75 Ohm SMC Plug Right Angle Connector Crimp/
Solder Attachment for RG179, RG187

RF Connectors Technical Data Sheet PE4252

Configuration
• SMC Plug Connector • RG179, RG187 Interface Type
• MIL-STD-348 • Crimp/Solder Attachment
• 75 Ohms • 11/32 inch Hex
• Right Angle Body Geometry
Features
• Gold Plated Contact • Contact plating according to MIL-G-45204
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4252 75 ohm SMC plug right angle connector with crimp/solder attachment for RG179 and RG187 is part of
our full line of RF components available for same-day shipping. Its right angle body geometry allows for easier connections
in tight spaces.
Our 75 ohm SMC plug right angle connector PE4252 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 0.77 in [19.56 mm]
Width/Dia. 0.375 in [9.53 mm]
Height 0.7 in [17.78 mm]
.
Weight 0.019 lbs [8.62 g]
.
Mating Torque 3 to 5 in-lbs [0.34 to 0.57 Nm]
Material Specifications
Description Material Plating
Contact Gold
MIL-G-45204
Insulation PTFE
Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information includ-
ing price, inventory and certifications: 75 Ohm SMC Plug Right Angle Connector Crimp/Solder Attachment for RG179,
RG187 PE4252

PE4252 REV 1.1 1
