75 Ohm SMC Plug Right Angle Connector Solder Attachment
Thru Hole PCB, .200 inch x .067 inch Hole Spacing

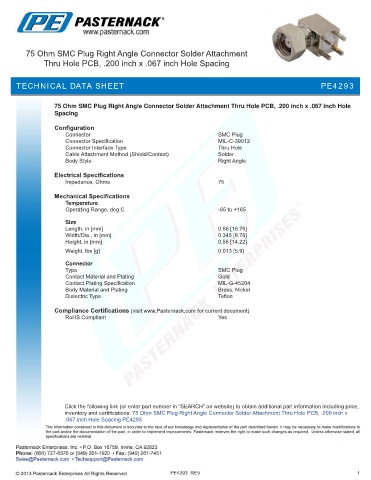

TECHNICAL DATA SHEET PE4293

75 Ohm SMC Plug Right Angle Connector Solder Attachment Thru Hole PCB, .200 inch x .067 inch Hole
Spacing

Configuration
Connector SMC Plug
Connector Specification MIL-C-39012
Connector Interface Type Thru Hole
Cable Attachment Method (Shield/Contact) Solder
Body Style Right Angle

Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165

Size
Length, in [mm] 0.66 [16.76]
Width/Dia., in [mm] 0.345 [8.76]
Height, in [mm] 0.56 [14.22]
.
Weight, lbs [g] 0.013 [5.9]

Connector
Type SMC Plug
Contact Material and Plating Gold
Contact Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMC Plug Right Angle Connector Solder Attachment Thru Hole PCB, .200 inch x
.067 inch Hole Spacing PE4293

PE4293 REV 1
